Pandas UDFs — 10-100x faster than Python UDFs

The whole DataFrames chapter used Spark’s built-in F.* functions, written in the JVM and running at full speed. We closed by naming the moment that ends: when you need your own Python logic on a column — a bespoke formula, an ML model, a parsing rule — and warned that the obvious move, wrapping a plain Python function as a UDF, is one of Spark’s most notorious performance cliffs. We asked how to run your own Python on a billion rows without falling off it. This lesson is the answer.

If you’ve written a regular Python UDF in PySpark and watched your job take forever, you’ve met the JVM↔Python boundary tax. Each row gets serialized, sent to a Python process, deserialized, processed, re-serialized, and sent back. For a billion rows, that’s a billion context switches.

Pandas UDFs fix this by sending batches of rows in Apache Arrow format (a zero-copy, columnar in-memory layout that lets data cross the JVM-Python boundary without serializing row by row). Same Python function, 10-100x faster, no other code changes.

Why plain Python UDFs are slow

Spark runs on the JVM. Your DataFrame data lives in JVM memory. When you call a Python UDF:

1. Spark serializes one row’s bytes (Pickle protocol)
2. Sends it to a Python subprocess
3. Python deserializes the row
4. Calls your function
5. Python serializes the result
6. Sends it back
7. JVM deserializes the result

For each row. Multiply by a billion. The function itself may be 100 nanoseconds, but the serialization round-trip is microseconds. You’re paying 99% overhead, 1% useful work.

# A slow UDF — serializes per row
from pyspark.sql.functions import udf
from pyspark.sql.types import StringType

@udf(StringType())
def normalize_phone(phone):
    if phone is None:
        return None
    digits = "".join(c for c in phone if c.isdigit())
    return f"+1{digits[-10:]}" if len(digits) >= 10 else None

df.withColumn("phone_norm", normalize_phone("phone"))

This works. It’s just 10-100x slower than necessary.

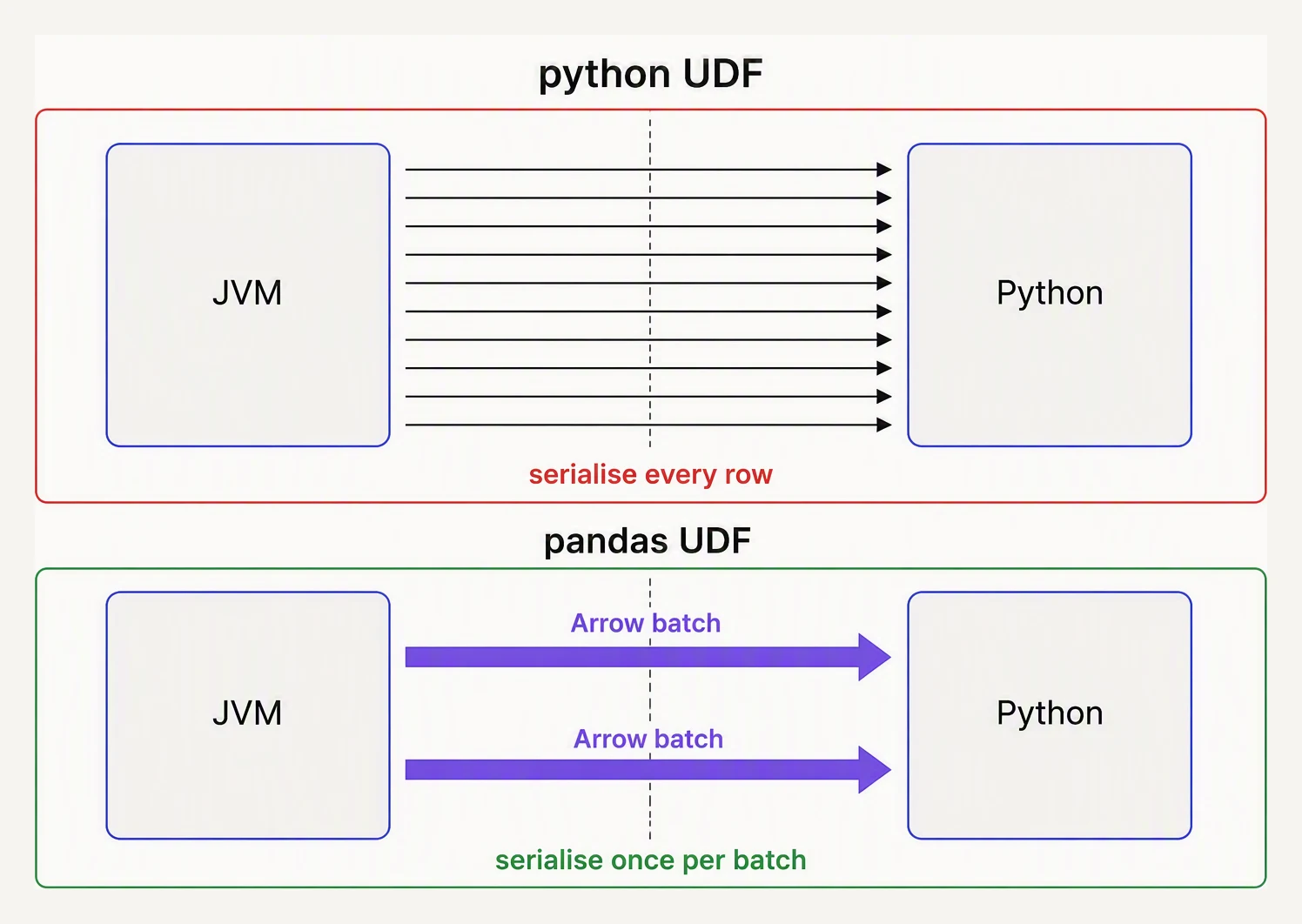

Pandas UDFs — Arrow-backed vectorization

Pandas UDFs send rows in Arrow batches (typically 10,000 rows at a time). Your Python function receives a pandas.Series (or several) and returns a pandas.Series. The serialization happens once per batch, not once per row.

import pandas as pd
from pyspark.sql.functions import pandas_udf
from pyspark.sql.types import StringType

@pandas_udf(StringType())
def normalize_phone(phone: pd.Series) -> pd.Series:
    digits = phone.str.replace(r"\D", "", regex=True)
    last_10 = digits.str[-10:]
    return ("+1" + last_10).where(digits.str.len() >= 10, None)

df.withColumn("phone_norm", normalize_phone("phone"))

Three things changed:

1. The decorator is @pandas_udf(...) instead of @udf(...)
2. The function operates on a Series (vectorized pandas), not a single value
3. Returns a Series of the same length

The result is a UDF that’s 10-100x faster for the same logic, because:

• Serialization happens once per ~10K-row batch instead of per row
• Inside the function, vectorized pandas/NumPy is itself much faster than a Python for loop

The three flavors

Pandas UDFs come in three forms, distinguished by what they take and what they return.

Flavor 1: Scalar — Series in, Series out

The one above. One column in, one column out, same length.

@pandas_udf(DoubleType())
def fahrenheit(celsius: pd.Series) -> pd.Series:
    return celsius * 9 / 5 + 32

You can also take multiple input columns:

@pandas_udf(DoubleType())
def bmi(weight_kg: pd.Series, height_m: pd.Series) -> pd.Series:
    return weight_kg / (height_m ** 2)

df.withColumn("bmi", bmi("weight", "height"))

This is the most common flavor. 90% of the UDFs you’ll write are scalar.

Flavor 2: Grouped map — apply a pandas function per group

Sometimes you need to do something Python-specific per group: fit a small model per user, run a stats test per cohort, etc. Grouped map gives you the entire group as a pd.DataFrame, and you return a pd.DataFrame.

import statsmodels.api as sm

def fit_user_model(pdf: pd.DataFrame) -> pd.DataFrame:
    if len(pdf) < 5:
        return pd.DataFrame()
    model = sm.OLS(pdf["target"], pdf[["x1", "x2"]]).fit()
    return pd.DataFrame({
        "user_id": [pdf["user_id"].iloc[0]],
        "coef_x1": [model.params["x1"]],
        "coef_x2": [model.params["x2"]],
    })

result = df.groupBy("user_id").applyInPandas(
    fit_user_model,
    schema="user_id long, coef_x1 double, coef_x2 double",
)

The function gets one group’s worth of data as a pandas DataFrame and must return a pandas DataFrame matching the declared schema.

This is the pattern for parallel per-user / per-customer Python work — train a small model, run an OCR call, anything where the logic is per-key.

Flavor 3: Grouped aggregate — Series in, scalar out (per group)

When the result per group is a single value, use the grouped agg flavor:

@pandas_udf(DoubleType())
def median(values: pd.Series) -> float:
    return float(values.median())

df.groupBy("country").agg(median("amount").alias("median_amount"))

Spark calls your function once per group; you return a single number. Use this when none of the built-in aggregations does what you need — percentiles, custom statistics, etc.

Before / after

Let’s say you need to apply a regex normalization across 100M rows.

# Regular UDF — 1 hour
@udf(StringType())
def clean(s):
    return re.sub(r"[^\w]+", "_", s.lower()) if s else None

# Pandas UDF — ~5 minutes
@pandas_udf(StringType())
def clean_p(s: pd.Series) -> pd.Series:
    return s.str.lower().str.replace(r"[^\w]+", "_", regex=True)

# Spark native — ~1 minute
F.regexp_replace(F.lower("col"), r"[^\w]+", "_")

The order of preference is clear: Spark native > Pandas UDF > Python UDF. Pandas UDFs still cross the JVM-Python boundary (once per batch), so they are not as fast as native functions — use them only when the logic genuinely needs Python. Use Python UDFs only when neither of the first two works.

A toy comparison

You can feel the per-row vs per-batch overhead in pure Python:

# Toy: per-row callback vs per-batch callback
import time

rows = list(range(1_000_000))

# Per-row: pay a function-call per element (a stand-in for crossing a boundary per row)
def per_row(x):
    return x * 2

start = time.perf_counter()
out1 = [per_row(x) for x in rows]
t1 = time.perf_counter() - start
print(f"per-row:   {t1*1000:.1f}ms")

# Per-batch: the function sees a whole batch; the work is inlined
def per_batch(batch):
    return [x * 2 for x in batch]

batch_size = 10_000
start = time.perf_counter()
out2 = []
for i in range(0, len(rows), batch_size):
    out2.extend(per_batch(rows[i:i + batch_size]))
t2 = time.perf_counter() - start
print(f"per-batch: {t2*1000:.1f}ms")

print("identical output:", out1 == out2)
print(f"speedup: {t1/t2:.1f}x")

per-row:   39.4ms
per-batch: 19.1ms
identical output: True
speedup: 2.1x

The guaranteed part is identical output: True — batching never changes the answer, only the cost. The timing is one machine’s numbers (yours will differ), but the direction is the real signal: paying a per-element function call (per_row(x), a stand-in for crossing the boundary per row) runs about 2× slower than letting the function chew a whole batch inline. And here’s the crucial caveat — that 2× is a pale shadow of the real Spark win. A Python function call costs nanoseconds; serializing a row across processes and the JVM↔Python boundary costs microseconds, thousands of times more. Amortize that over a 10,000-row Arrow batch instead of paying it per row, and the 2× here becomes the 10–100× you see in production.

When NOT to use a UDF

A common anti-pattern: writing a UDF for something Spark already has built-in. Always check the built-ins first.

The pyspark.sql.functions module has hundreds of these. Skim it once a quarter — you’ll discover useful ones you didn’t know existed.

In one breath

A plain Python @udf serializes data one row at a time across the JVM↔Python boundary — microseconds of overhead per row, paid a billion times — while a Pandas UDF sends 10,000-row Apache Arrow batches so the serialization is paid once per batch (and pandas/NumPy vectorization speeds the work inside too), for a 10–100× win with the same logic; it comes in three flavors — scalar (Series→Series, 90% of cases), grouped map (applyInPandas, a whole group’s DataFrame in and out — the pattern for per-customer models), and grouped aggregate (Series→one scalar per group) — but the real order of preference is Spark native F.* > Pandas UDF > plain Python UDF, because native functions never cross the boundary at all.

Practice

Before the quiz, internalize the preference order with a concrete task: normalizing a phone-number string across 100M rows. Which of the three approaches (native F.*, Pandas UDF, plain @udf) would you try first, and why — and what specifically does the plain @udf pay that the native function doesn’t? Then match the flavor: you must fit one small model per customer across 50,000 customers — which Pandas UDF flavor, and why not the scalar one?

A question to carry forward

That closes the DataFrames chapter — and look at the rule it kept landing on, the one that ranked every option: native F.* beats Pandas UDF beats Python UDF. Every lesson here pointed the same way, and always for the same reason, stated and re-stated but never actually demonstrated: native functions are fast because Catalyst can see inside them. It pushes them down, reorders them, fuses them. A UDF is a black box Catalyst can’t optimize, which is the whole reason it’s slower.

We have now invoked “Catalyst” a dozen times as the invisible hand behind every speedup — predicate pushdown, column pruning, the reason your obvious code runs fast — and never once opened it. The whole DataFrames chapter was, in a sense, advice about how to write code that keeps this optimizer happy, given without ever showing you the optimizer. So the question to carry forward, the one that begins the internals chapter, is: what is this Catalyst that has been silently rewriting your every query — what does it actually do to your code between the moment you call an action and the moment the cluster runs, and how does it turn a naive pipeline into an optimized one? That is Catalyst, the optimizer, and it opens the next chapter — where we stop using Spark and start understanding it.
