MLflow on Databricks — tracking to serving

The last lesson ended on a question: when a job produces a trained model instead of a table, does the same platform close the loop from training all the way to live serving? The answer is yes — and the loop runs on a tool Databricks itself created.

Databricks built MLflow. They also built the rest of an ML platform around it — and that integration is the strongest argument for doing ML on Databricks rather than wiring up the OSS pieces yourself. Every notebook has a tracking server attached. Models register to Unity Catalog with lineage. Serving endpoints are one CLI command. Feature tables live alongside your data tables.

This lesson is what changes when you take a model from “works in a notebook” to “serves traffic in production” on Databricks.

What you get for free

The instant you import mlflow in a Databricks notebook, several things are already wired up:

• Tracking server — calling mlflow.<flavor>.autolog() (or enabling workspace-level autologging in settings) captures metrics, parameters, and the trained model artifact for sklearn, XGBoost, LightGBM, PyTorch, TensorFlow, and Spark MLlib with no extra code.
• Experiment — each notebook has an auto-created experiment at the notebook’s path. Runs from that notebook appear there.
• Artifact store — backed by your workspace’s DBFS / Unity Catalog volume. No S3 setup, no auth config.
• UI — the “Experiments” tab in the workspace, filterable, diff-able, with per-run plots.

A complete training script that takes advantage of all of this:

import mlflow
import mlflow.sklearn
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split

# 1. Read features from a UC table — full lineage tracking
df = spark.read.table("main.ml.churn_features").toPandas()

X = df.drop(columns=["churned"])
y = df["churned"]
X_tr, X_te, y_tr, y_te = train_test_split(X, y, test_size=0.2, random_state=42)

# 2. Autolog: every metric, param, and the model itself, captured automatically
mlflow.sklearn.autolog()

with mlflow.start_run(run_name="rf-baseline"):
    model = RandomForestClassifier(n_estimators=200, max_depth=8)
    model.fit(X_tr, y_tr)

    # Manual logging on top of autolog still works
    test_acc = model.score(X_te, y_te)
    mlflow.log_metric("test_accuracy", test_acc)

No tracking URI to configure. No S3 bucket to create. The run appears in the experiment UI before the cell finishes.

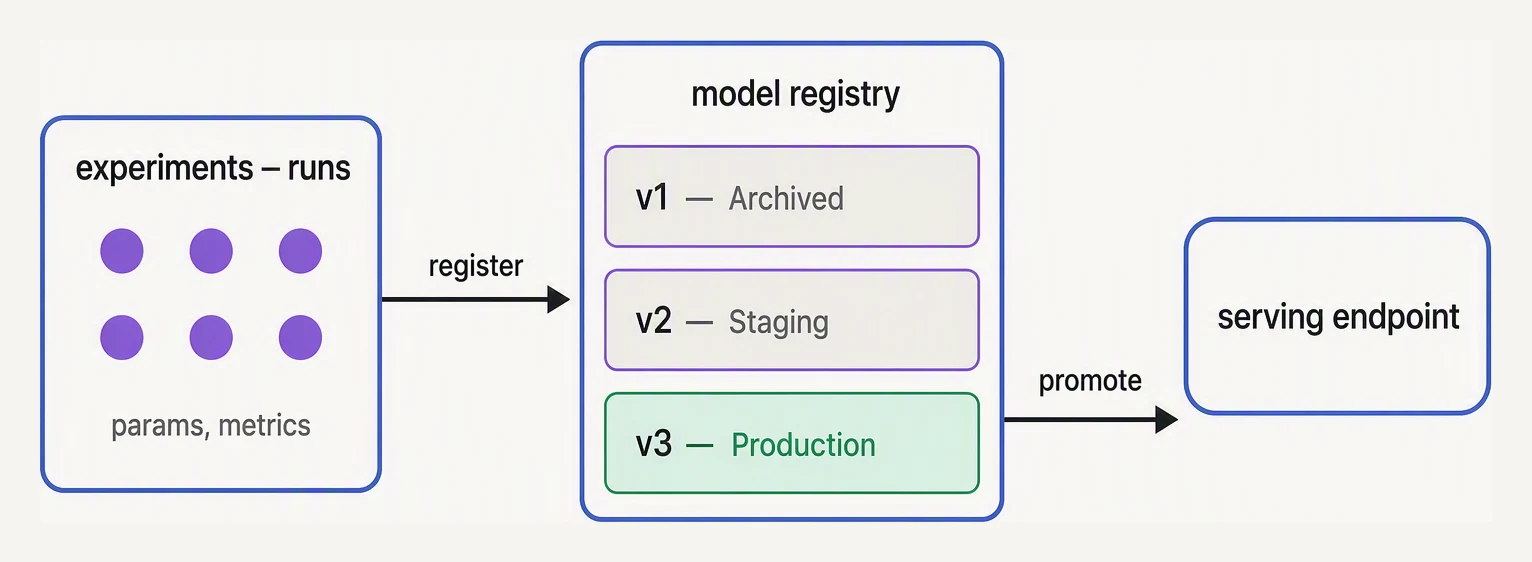

The shift to Unity Catalog model registry

Up to 2023, Databricks shipped a Workspace Model Registry — a flat namespace of registered models, one per workspace. It worked but didn’t fit the Unity Catalog world. Since 2024, the recommended path is to register models in Unity Catalog, using the three-level namespace.

mlflow.set_registry_uri("databricks-uc")

# Register from a finished run
result = mlflow.register_model(
    model_uri = f"runs:/{run_id}/model",
    name = "main.ml.churn_model",
)
print(result.version)   # "3"

A UC-registered model gets you:

• Permissions — same GRANT/REVOKE as tables. An analyst can SELECT features but not EXECUTE the model unless granted.
• Lineage — UC tracks which feature tables fed the model, which notebook trained it, which endpoints serve it.
• Cross-workspace access — a model registered in prod can be read by a staging workspace pointed at the same UC.
• Aliases — @champion, @challenger, @production are movable pointers to versions:

from mlflow.tracking import MlflowClient
client = MlflowClient(registry_uri="databricks-uc")

# Promote version 3 to "champion"
client.set_registered_model_alias(
    "main.ml.churn_model", "champion", 3,
)

# Load the current champion — your serving code doesn't care about version
model = mlflow.pyfunc.load_model("models:/main.ml.churn_model@champion")

Aliases are the replacement for the old Staging / Production stages. They’re movable pointers; the underlying versions stay immutable, which is what you want for audit.

Model serving — real-time inference

Loading a model into a notebook is fine for batch scoring (you write predictions back to a Delta table). For real-time use cases — fraud checks, recommendations, anything that needs sub-second response — you want a serving endpoint.

A Databricks serving endpoint is an auto-scaling HTTPS service backed by a UC-registered model version. Create one from the CLI:

databricks serving-endpoints create \
  --name churn-endpoint \
  --json '{
    "config": {
      "served_entities": [{
        "entity_name": "main.ml.churn_model",
        "entity_version": "3",
        "workload_size": "Small",
        "scale_to_zero_enabled": true
      }]
    }
  }'

scale_to_zero_enabled: true is the cost-saver — the endpoint spins down idle replicas. First request after idle takes a few seconds (cold start); steady traffic stays warm.

For A/B testing, an endpoint can serve multiple model versions behind a traffic split:

{
  "config": {
    "served_entities": [
      {"entity_name": "main.ml.churn_model", "entity_version": "3", "name": "v3"},
      {"entity_name": "main.ml.churn_model", "entity_version": "4", "name": "v4"}
    ],
    "traffic_config": {
      "routes": [
        {"served_model_name": "v3", "traffic_percentage": 90},
        {"served_model_name": "v4", "traffic_percentage": 10}
      ]
    }
  }
}

10% of requests hit v4, 90% hit v3. You compare metrics in the endpoint’s monitoring tab; if v4 wins, you promote it to 100% by updating the config.

Querying the endpoint is a plain HTTPS POST:

curl -X POST https://<workspace>.cloud.databricks.com/serving-endpoints/churn-endpoint/invocations \
  -H "Authorization: Bearer $DATABRICKS_TOKEN" \
  -H "Content-Type: application/json" \
  -d '{"dataframe_records": [{"tenure_months": 12, "monthly_charges": 70.5}]}'

The endpoint handles request batching, auto-scaling, and metrics collection for free. You don’t run a Flask server.

Feature Engineering in Unity Catalog

Training and serving need the same features computed the same way. That’s the “training-serving skew” problem. The OSS solution is a feature store like Feast. Databricks ships Feature Engineering in Unity Catalog (formerly Databricks Feature Store) — a native feature store backed by UC tables.

A feature table is just a Delta table with a primary key, registered to UC. You compute it once (a scheduled job), then both training code and serving code read from the same table:

from databricks.feature_engineering import FeatureEngineeringClient, FeatureLookup

fe = FeatureEngineeringClient()

# Define a feature table
fe.create_table(
    name = "main.ml.customer_features",
    primary_keys = ["customer_id"],
    schema = customer_features_df.schema,
    description = "Per-customer features for churn model",
)
fe.write_table(name="main.ml.customer_features", df=customer_features_df, mode="merge")

# At training time, join features to a labels dataframe
training_set = fe.create_training_set(
    df = labels_df,
    feature_lookups = [
        FeatureLookup(
            table_name = "main.ml.customer_features",
            feature_names = ["tenure_months", "monthly_charges", "avg_session_minutes"],
            lookup_key = "customer_id",
        ),
    ],
    label = "churned",
)

training_df = training_set.load_df().toPandas()
# ... train your model on training_df ...

# Log model WITH feature spec — serving endpoint will auto-fetch features
fe.log_model(
    model = trained_model,
    artifact_path = "model",
    flavor = mlflow.sklearn,
    training_set = training_set,
    registered_model_name = "main.ml.churn_model",
)

The killer detail is in the last call: fe.log_model records which features were used. At inference time, the serving endpoint can look up the features by primary key automatically — you POST {"customer_id": 42} and the endpoint fetches the latest features from the UC table before scoring.

That eliminates the “the feature value at train time differs from serve time” class of bug, and it means your serving client doesn’t need to know what features the model uses.

Lineage in one query

Once you’ve done a UC-registered training run, the lineage is queryable. Databricks surfaces model-to-table lineage in system.access.table_lineage and exposes endpoint config in system.serving.served_entities (enable system tables in the account console first):

-- What tables did the churn model training run read?
SELECT DISTINCT source_table_full_name
FROM system.access.table_lineage
WHERE target_table_full_name = 'main.ml.churn_model';

-- What endpoints are serving entities from the main catalog?
SELECT name, entity_name, entity_version, state
FROM system.serving.served_entities
WHERE entity_name LIKE 'main.ml.%';

The exact system table schema evolves as Databricks adds capabilities — check the system tables docs for the current column names before querying. The principle is the same: this is the kind of audit trail that’s tedious in a hand-rolled MLOps stack and free in Databricks because everything goes through UC.

A pyfunc model in pure Python

The MLflow pyfunc abstraction — “any model is a callable that takes a dataframe and returns predictions” — is small enough to demo:

# A toy MLflow-style registry + pyfunc model.

class Registry:
    def __init__(self):
        self.models = {}      # name -> {version -> model_obj}
        self.aliases = {}     # (name, alias) -> version

    def register(self, name, model):
        self.models.setdefault(name, {})
        version = len(self.models[name]) + 1
        self.models[name][version] = model
        print(f"registered {name} version {version}")
        return version

    def set_alias(self, name, alias, version):
        self.aliases[(name, alias)] = version
        print(f"alias {name}@{alias} -> v{version}")

    def load(self, uri):
        # "models:/name@alias" or "models:/name/version"
        name_part = uri.replace("models:/", "")
        if "@" in name_part:
            name, alias = name_part.split("@")
            version = self.aliases[(name, alias)]
        else:
            name, v = name_part.split("/")
            version = int(v)
        print(f"loading {name} v{version}")
        return self.models[name][version]


class ChurnModel:
    def __init__(self, threshold):
        self.threshold = threshold

    def predict(self, X):
        # Pretend logistic regression on 'tenure'
        return [1 if x["tenure"] < self.threshold else 0 for x in X]


reg = Registry()
reg.register("churn", ChurnModel(threshold=6))
reg.register("churn", ChurnModel(threshold=4))
reg.set_alias("churn", "champion", 1)
reg.set_alias("churn", "challenger", 2)

# Same batch, scored before and after a promotion
batch = [{"tenure": 3}, {"tenure": 5}, {"tenure": 10}]

# Serving code: loads @champion, doesn't know or care about the version
champion = reg.load("models:/churn@champion")
print("predictions:", champion.predict(batch))

# Promote challenger (v2) to champion
reg.set_alias("churn", "champion", 2)
champion = reg.load("models:/churn@champion")
print("after promotion:", champion.predict(batch))

registered churn version 1
registered churn version 2
alias churn@champion -> v1
alias churn@challenger -> v2
loading churn v1
predictions: [1, 1, 0]
alias churn@champion -> v2
loading churn v2
after promotion: [1, 0, 0]

Watch the middle customer (tenure: 5). Under the champion v1 (threshold 6) they score 1 — predicted to churn. The serving code never changed, but the moment the @champion alias swings to v2 (threshold 4), the very next load returns the new model and that same customer scores 0. Aliases as movable pointers to immutable versions is the whole trick: production loads @champion, and promoting a new model is a single alias-swap that takes effect on the next load — no redeploy, no code change.

Honest take

The Databricks ML stack is excellent when you’re already on Databricks. Tracking, registry, serving, feature store — all integrated, all governed by UC, all queryable.

The catch: it’s a Databricks ecosystem. Endpoints don’t serve outside the platform. The feature store doesn’t work without UC. If your training is on Databricks but serving is on a Kubernetes cluster elsewhere, you’re either lifting models to a generic registry (OSS MLflow + S3 + Ray Serve or BentoML), or doubling your feature pipeline. Pick the stack based on where all of training, batch scoring, and online serving will live.

If that’s all Databricks: use the native pieces. If not: OSS MLflow plus your own serving is still a perfectly good answer.

In one breath

On Databricks, import mlflow already wires up tracking — autolog() captures metrics, params, and the model with no extra code. Register the model into Unity Catalog (models:/catalog.schema.name), not the deprecated Workspace registry, so it inherits table-grade permissions and lineage; move aliases (@champion, @challenger) as pointers to immutable versions. A serving endpoint turns a version into an auto-scaling HTTPS service (with scale_to_zero and declarative traffic splits for A/B), and Feature Engineering in UC logs which features a model needs so the endpoint fetches them by key at inference — killing training-serving skew. It’s all excellent if you live on Databricks; endpoints and the feature store don’t travel, so choose by where serving runs, not just training.

Practice

Before the quiz, reason through a release: model v4 is registered and you want 10% of live traffic on it while v3 keeps the rest. What’s the alias and serving-config change, how do you promote v4 to 100% once it wins, and — the subtle one — if v4’s features are looked up from a UC feature table, what does the client actually need to send in the request body?

A question to carry forward

That closes PySpark. You now have the full Databricks loop — store in Delta, transform with PySpark, schedule with Workflows, train and serve with MLflow — and every reliable piece of it rested on one quiet assumption we never examined. The wheel lived in src/. The Asset Bundle was “checked into Git.” Production work was “reviewable in a pull request.” Model versions were immutable so you could audit what changed. Strip all of that away and ask the blunt question: what is the thing that actually remembers every change to a codebase, lets a team work on it at once without overwriting each other, and lets you undo a mistake from three weeks ago without a backup? That tool is Git, and it is the foundation the next section is built on — starting with why version control exists at all.
